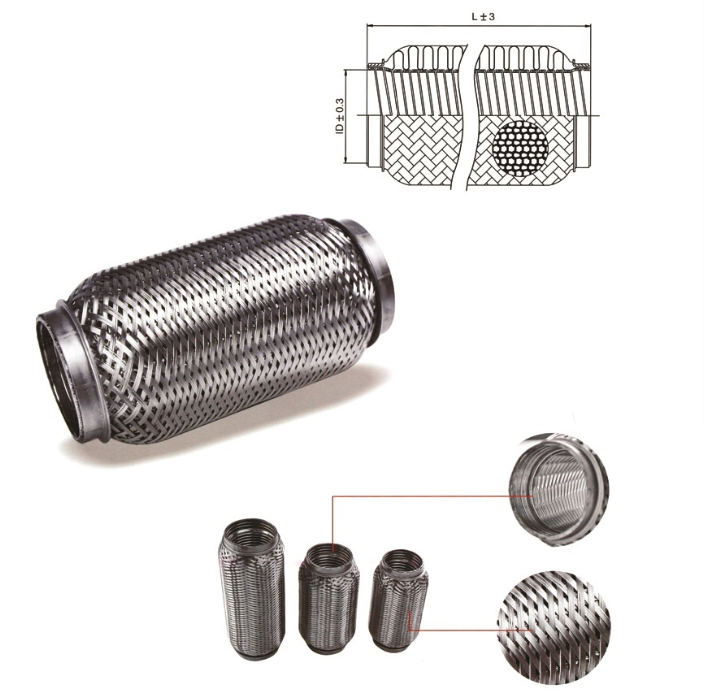

10" Long X 2.5" Stainless Steel Exhaust Flex Flexible Bellow Double
Braid
| Discription | Flexible Bellow Pipe | Parts No. | YP-EXF025 |
| Size | 1-3/4"~3" | Style | flexible pipe with outer braid |
| Flex pipe Material | Stainless steel 304 201 | Joint Material | steel/aluminum |
| Car Make | Universal | Application | Exhaust pipe of various of car,bus,truck,and so on. |
| Packing | Plastic bag and seaworthy box | Package Quantity | 1 pcs |
| Brand | RM | Place of Origin | Tianjin, China |
| Certificate | ISO | Warranty | One Year |
The flexible bellow pipe is an important part of car exhaust
system. When you accelerate, The car’s engine moves back and forth
on rubber engine mounts. The flexible pipe allows for flexibility
in your exhaust system, preventing the engine’s movement and
vibrations from damaging and cracking the exhaust pipe.
Typical Applications:
Passenger Car
Diesel Trucks
Off highway
Materials:
Outer braiding
Lightweight stainless steel bellows
Strip wound liner
End caps
Optional Flanges
Specification
| Inner Diameter (ID) | Length(L) | Inner Diameter (ID) | Length(L) |
| 1-3/4” (45mm) | 4”(102mm) | 3”(76.2mm) | 4”(102mm) |
| 6”(152mm) | 6”(152mm) |
| 7”(178mm) | 8”(203mm) |
| 8”(203mm) | 10”(254mm) |
| 9”(230mm) | 12”(305mm) |
| 10”(254mm) | 42mm | 120mm |
| 11”(280mm) | 165mm |
| 12”(305mm) | 180mm |
| 2”(50.8mm) | 4”(102mm) | 50mm | 120mm |
| 6”(152mm) | 165mm |
| 7”(178mm) | 55mm | 120mm |
| 8”(203mm) | 165mm |
| 9”(230mm) | 180mm |
| 10”(254mm) | 200mm |
| 11”(280mm) | 250mm |
| 12”(305mm) | 60mm | 160mm |
| 2-1/4”(57.2mm) | 4”(102mm) | 200mm |
| 6”(152mm) | 240mm |
| 7”(178mm) | 65mm | 150mm |
| 8”(203mm) | 200mm |
| 9”(230mm) | 70mm | 100mm |
| 10”(254mm) | 120mm |
| 11”(280mm) | 150mm |
| 12”(305mm) | 200mm |
| 2-1/2”(63.5mm) | 4”(102mm) | Note: Customized size are available. |
| 6”(152mm) |
| 7”(178mm) |
| 8”(203mm) |
| 9”(230mm) |
| 10”(254mm) |
| 11”(280mm) |
| 12”(305mm) |
About us
We are a leading supplier of exhaust connectors in China. We
design, Engineer and manufacture non-load supporting under body
flex and self
supporting flex couplings to match each vehicle’s unique platform. Our Engineers work closely with their respective Engineering departments to:
satisfy emission requirements, reduce the transfer of stress and
vibration to the vehicle, improve Vehicle Noise, Vibration & Harshness.
Packing and delivery:
Plastic bag + seaworthy carton
Lead time: 5-8 days if stocks available, otherwise depends on the
purchased quantity.
