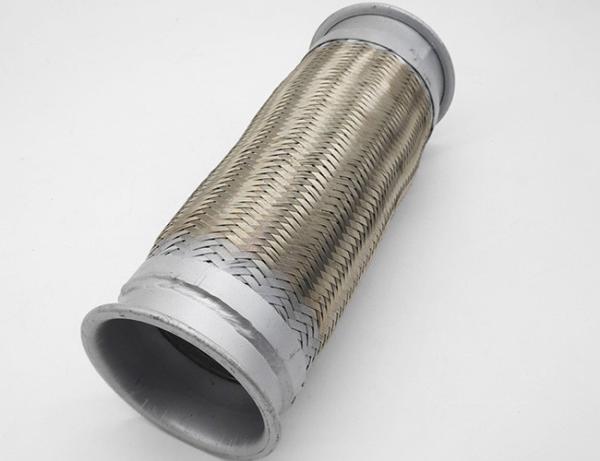

Tractor Muffler Flexible Exhaust Pipe , Exhaust Bellow Pipe for
tractor
The flexible exhaust pipe bellow is a common part for engine exhaust system of car or truck. It
allows the exhaust system some flexibility. Flex. Pipe are an
essential part of any front wheel drive vehicle and on most all
wheel drive vehicles. On front wheel cars, since the motor is
mounted transversely, when you accelerate the motor rocks and the
flex. Pipe protects your exhaust system from breakage and more
noise. Without that extra flexibility , the rocking motion would
crack the exhaust system and cause a loud leak.
Specifications:
1. ID:1"~6" Length:4"~12" or as requirement
2. To resolve minor deviation because of piping connection and
eliminate the pipeline residual stress;
3.Metal bellows to absorb large axial displacement between straight
tube and support frame , and small horizontal displacement;
4 Very.Easy to install, clean and maintenance.
5. More types are available
6. Outer braid stainless steel,knitted by 12 units
7. Cap stainless steel or aluminized
8. Working pressure 0~5 Mpa
9. Packaging each one with a PE bag , usually 25 pieces in a carton box as usual or as requirement
We supply many types, based on different constructions and different material. SUS 201,
SUS 202, SUS 304 SUS316, Aluminum are all available, standard sizes
like 1.5” / 1.75” / 2.0” / 2.25” / 2.5” / 3.0” / 3.5” / 4.0”, etc.
Regular 6 Types on the market as following:
Type 1 : Outer Braided Flexible pipe with inner bellow
Type 2 : Outer Braided Flexible pipe with braided liner and bellows
in the middle
Type 3 : Bellows with interlock
Type 4: Stainless steel Bellows
Type 5 : Braided Flexible pipe with welded nipples
Type 6: Mesh Braided Flexible Pipe
See the drawings:
Standard Sizes of the flexible pipe bellow:
| Part No. | innner dia. inch | inner diamater mm | Length inch | Length mm |
| YP13404 | 1-3/4" | 45 | 4" | 102 |
| YP13406 | 1-3/4" | 45 | 6" | 152 |
| YP13407 | 1-3/4" | 45 | 7" | 178 |
| YP13408 | 1-3/4" | 45 | 8" | 203 |
| YP13409 | 1-3/4" | 45 | 9" | 230 |
| YP13410 | 1-3/4" | 45 | 10" | 254 |
| YP13411 | 1-3/4" | 45 | 11" | 280 |
| YP13412 | 1-3/4" | 45 | 12" | 305 |
| YP20004 | 2" | 50.8 | 4" | 102 |
| YP20006 | 2" | 50.8 | 6" | 152 |
| YP20008 | 2" | 50.8 | 8" | 203 |
| YP20009 | 2" | 50.8 | 9" | 230 |
| YP20010 | 2" | 50.8 | 10" | 254 |
| YP20011 | 2" | 50.8 | 11" | 280 |
| YP20012 | 2" | 50.8 | 12" | 305 |
| YP21404 | 2-1/4" | 57.2 | 4" | 102 |
| YP21406 | 2-1/4" | 57.2 | 6" | 152 |
| YP21408 | 2-1/4" | 57.2 | 8" | 203 |
| YP21409 | 2-1/4" | 57.2 | 9" | 230 |
| YP21410 | 2-1/4" | 57.2 | 10" | 254 |
| YP21411 | 2-1/4" | 57.2 | 11" | 280 |
| YP21412 | 2-1/4" | 57.2 | 12" | 305 |
| YP21204 | 2-1/2" / 3" | 63.5 / 76.2 | 4" | 102 |
| YP21206 | 2-1/2" / 3" | 63.5 / 76.2 | 6" | 152 |
| YP21208 | 2-1/2" / 3" | 63.5 / 76.2 | 8" | 203 |
| YP21209 | 2-1/2" / 3" | 63.5 / 76.2 | 9" | 230 |
| YP21210 | 2-1/2" / 3" | 63.5 / 76.2 | 10" | 254 |
| YP21211 | 2-1/2" / 3" | 63.5 / 76.2 | 11" | 280 |
| YP21212 | 2-1/2" / 3" | 63.5 / 76.2 | 12" | 305 |
Warehouse / Packing :
►FAQ:
1. How can I place an order?
Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us
with Skype / email / phone, in case of any delays.
2. What kind of auto parts we provide?
We have exhaust muffler, exhaust pipe, corrugated flexible
pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle
joint clamp and other exhaust accessories for your choose.
3. How about the warranty ?
We have 1 year warranty and lifelong maintenance
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one
which is the most convenient or cost effective for you.
