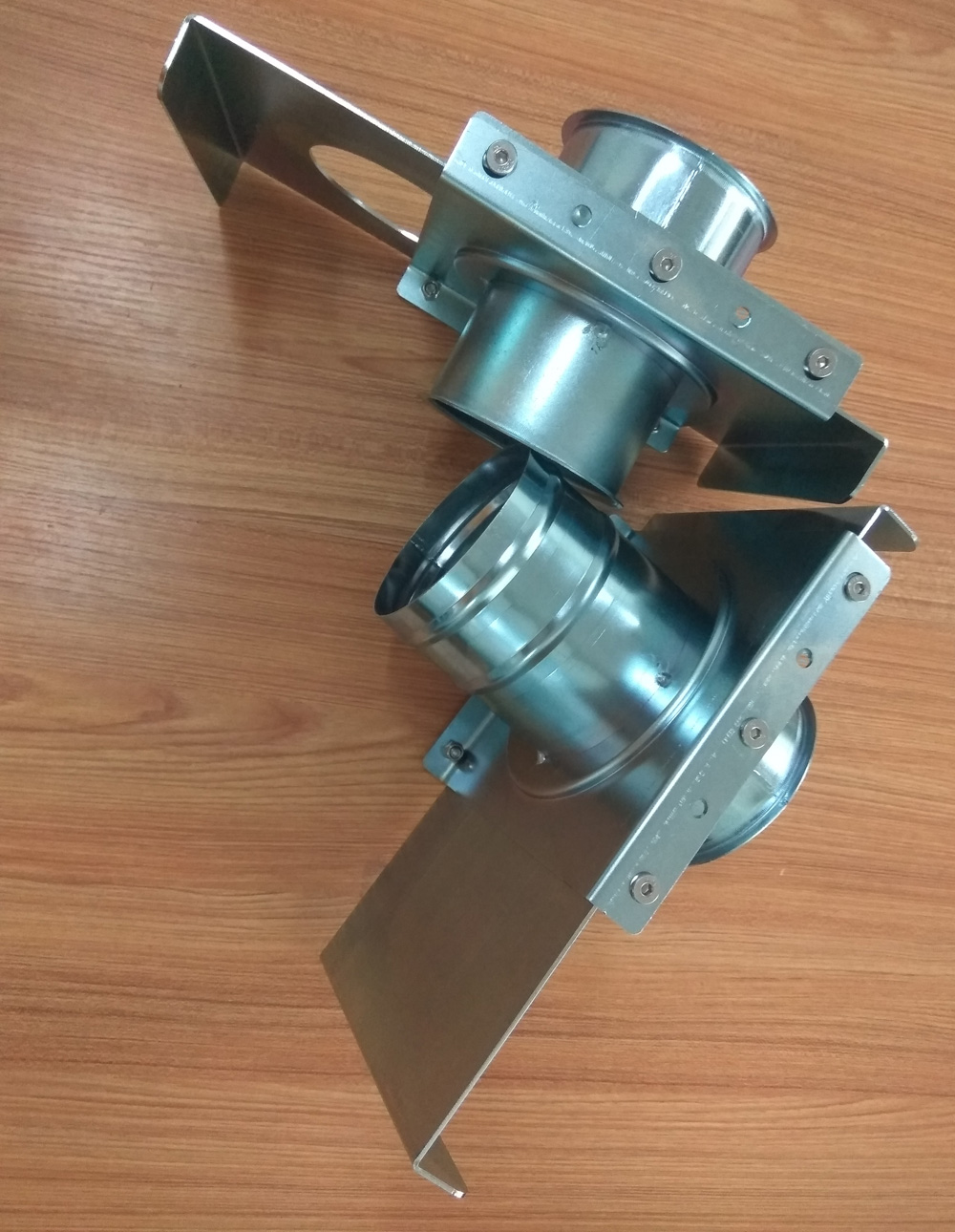

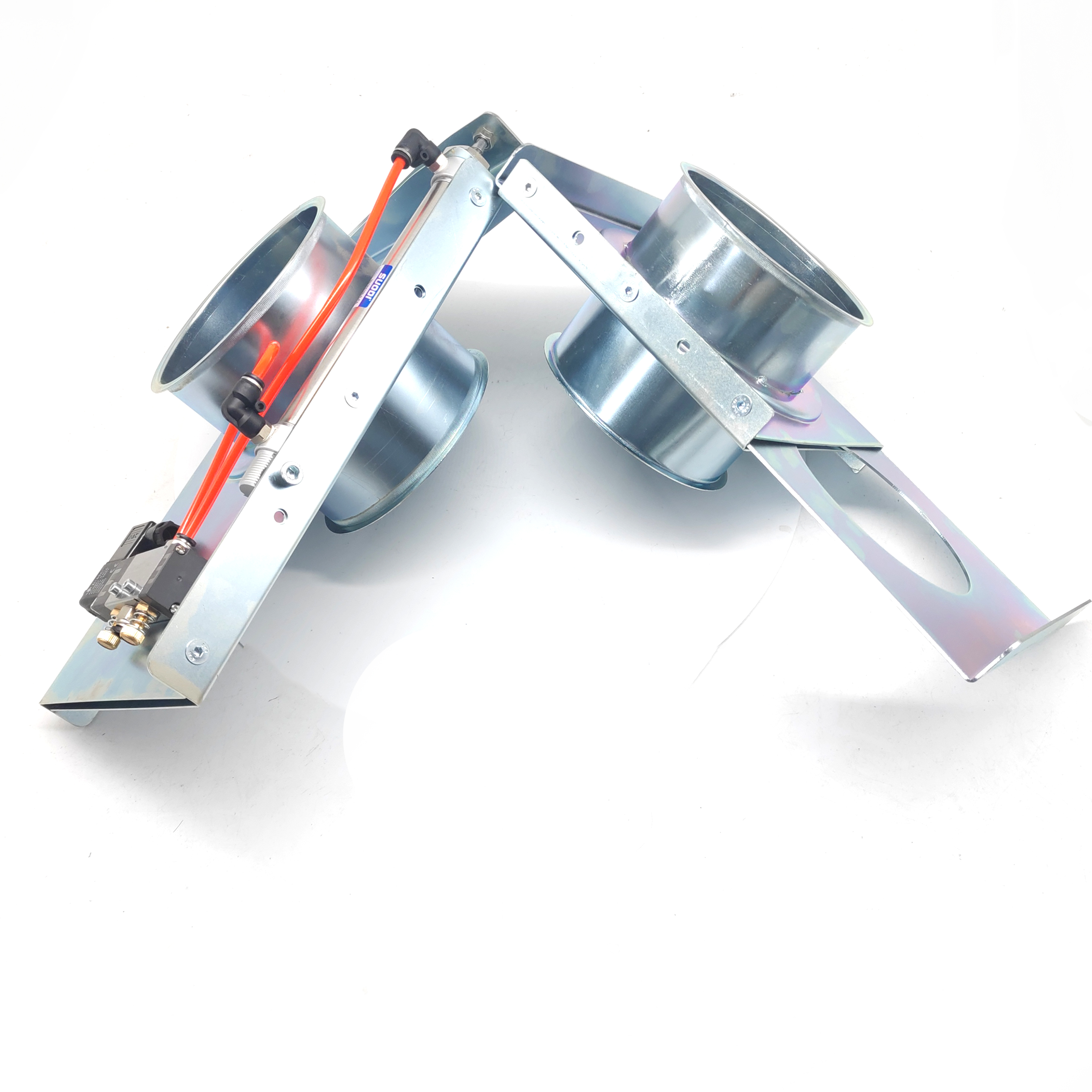

Galvanised automatic blast gate sliding damper for dust collecion,
filtration
A blast gate is a valve used to isolate separate parts of a vacuum
extraction system. These blast gates are usually very simple and
typically consist of a sliding or rotating plate which blocks off
the vacuum line. We're very professional in design and produce many
types blast gates, or sliding damper, both manual and pneumaticly.
They are most commonly encountered in dust extraction systems
installed in wood working shops to keep all the vacuum lines to
unused machines closed to maximize the vacuum pressure. Blast gates
are usually fitted near the machine suction point, generally hand
operated or pneumatic operated.
| Name | Automatic/pneumatic/manual blast gate sliding damper |
| Diameter | 50mm - 650mm |
| Material | Mild steel with zinc plating or stainless steel material |
| Application | Dust extraction system / dust collection system /Air filtration/
Air handling/ Particle conveying |
| Thickness | 1mm steel for connection sleeve, 2mm or 2.5mm for housing and blade |
| Cylinder No. | 1 or 2 |
| Solenoid | 24v / 110v /220v |
| Relative product | Duct bends, ductwork clamps, straight pipe, light duty cut-offs,
flange, etc. |
Features:
1.Sealing available to reduce air loss and friction
2.Easy to operate
2.Strong welding
3.Beautiful appearance and galvanisation surface
4.Optional 24V or 220V mostly
Connetion ways:
Flange ends for flange ducting, straight end for spiral hose
connection
Most 3 common models:
Manual blast gate, pneumatic blast gate, light duty sliding damper
Packing:
Into cartons or wooden crates
Our advantage:
1. We have a team of excellent designers and engineers who are
well-versed in the styles and trends of high quality products.
2. We have our own factory with competitive prices.
3. 16 years of exporting experience
4. Good pre-sale and after-sale services, if any defective products
due to us, all of them will be replaced by free.
5. Flexible payment terms.
Company Overview:

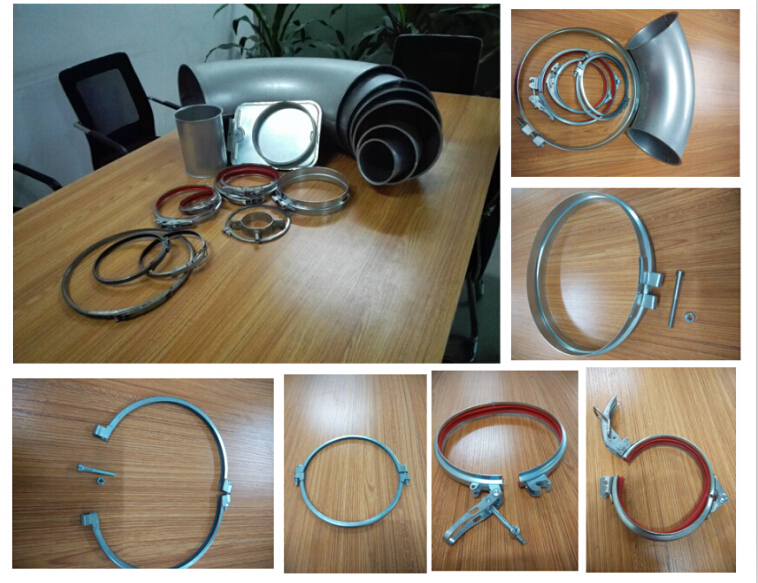

We develop and manufacture modular ducting, circular ductwork in
galvanised steel, mild steel and stainless steel, along with a full
range of ancillary fittings and components. Our ducting system
adopts the flanged/lip edge quick connection way, allowing rapid
installation with no special tools needed. Products including
pressed bends ; straight duct pipe, rapid lock pull ring , wide
rings, slim rings, flanges,sliding dampers/blast gate in manual and
pneumatic, butterfly dampers, clip bands, branch and trouser
pieces, throttle valves, diverters, pipe couplings, and many other
customized clamps etc.
