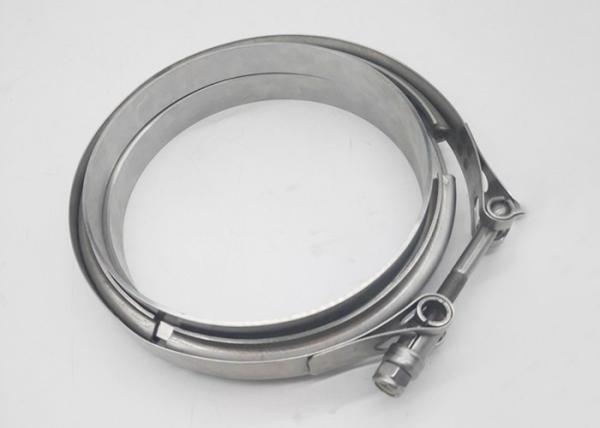

Universal 3.5" Auto Exhaust Pipe Band Clamp Assembly
Product Quick Details:
Name: 3.5" Car Exhaust Pipe Band Clamp Kit
Model: Model: V band hose clamp or auto exhaust clamp
Material : Stainless Steel 304
Product Introductions:
- Universal V band clamps / couplings provides quick and easy
solution to connect or remove exhaust system , turbo downpipe ,
catbacks , diesel engines, intake, intercooler piping and some
processing system. No special tools are needed, you only need to
simply undo the clamp by screwing the bolt and remove the system or
gain access easily.
Kits Choices:
1. 1 V band clamp + 2 Flanges (Flanges can be M/F style or FF
style) ;
2.1 V band Clamp
Remark: M/F flanges means Male and Female Flanges with grooves , FF
flanges means Flat flanges.
Product Details:
Our V Band Clamps has Clear screw thread , can match well with
various nuts ; Good butt welding, each welding point can bear about
150KGS tension.
►.Clear screw thread & thread galling free.
Features of Universal V band clamps:
►. Different bolts can be provided, in different length,diameters
or material
►.Different flanges (Male/Femal, or flat flanges), V inserts are
available to choice.
►.Quality manufacturing , Shiny surface with no burr.
►. Different Locking system are available , quick release clamps or
standard T bolt clamps or as customers' design.
►. Customised diameters, width, thickness and sizes are welcome.
Technological Parameters:
Item | Material | Spec.
(inch) | Flange ID(mm) | Band width
(mm) | Screw
(mm) |
Auto V-Band Clamp Kit | High strength SS 304 | 2.0' | 51.6 | 19 | M6 |
| Auto V-Band Clamp Kit | High strength SS 304 | 2.25' | 57.9 | 19 | M6 |
| Auto V-Band Clamp Kit | High strength SS 304 | 2.5' | 64.3 | 19 | M6 |
| Auto V-Band Clamp Kit | High strength SS 304 | 2.75' | 70.6 | 19 | M6 |
| Auto V-Band Clamp Kit | High strength SS 304 | 3.0' | 77 | 25 | M8 |
| Auto V-Band Clamp Kit | High strength SS 304 | 3.25' | 83.3 | 25 | M8 |
| Auto V-Band Clamp Kit | High strength SS 304 | 3.5' | 89.7 | 25 | M8 |
| Auto V-Band Clamp Kit | High strength SS 304 | 4.0' | 102.4 | 25 | M8 |
| Auto V-Band Clamp Kit | High strength SS 304 | 5.0' | 127.8 | 25 | M8 |
Other Auto Clamps available:
