Product description of Auto Parts Engine Exhaust Flex Pipe:
Exhaust flex couplings are stainless steel expansion joints
designed for engine exhaust. They're constructed with 2-ply bellows
and designed with a seamless, convoluted inner core—increasing
flexibility in order to reduce vibrations and prevent exhaust
leaks. The flex pipes are offered in a variety of lengths,
diameters, and attachment styles.
- Bellow materials: Stainless steel 301 201 202 409 , thickness
between 0.25-0.30mm
- Braid and interlock: Stainless steel 304
- Collars(cap): Stainless steel or aluminized steel
- Nippe(extension pipe): Stainless steel or aluminized steel
- Keyword: exhaust flex pipe, exhuast flex tube, exhaust corrugated
bellow pipe, exhaust flex coupling
Specification Of Auto Parts Engine Exhaust Flex Pipe
Remark: Exhaust flexible pipe with nipple/extension pipe (2" )
Customized sizes are acceptable as drawing or samples.
NOMINAL INSIDE
DIAMETER I.D | OVERALL LENGTH
O/L | NOMINAL INSIDE
DIAMETER I.D | OVERALL LENGTH O/L | NOMINAL INSIDE
DIAMETER I.D | OVERALL LENGTH O/L |
| 1-3/4 " (45mm) | 4 " (102mm) | 2-1/2 "(63.5mm) | 4 " (102mm) | 43mm | 120mm |
| 6 " (152mm) | 6 " (152mm) | 165mm |
| 8 " (203mm) | 8 " (203mm) | 180mm |
| 9 " (230mm) | 9 " (230mm) | 50mm(52mm) | 120mm |
| 10 " (254mm) | 10 " (254mm) | 165mm |
| 11 " (280mm) | 11 " (280mm) | 54.5mm | 120mm |
| 2"(51mm) | 12 " (305mm) | 12 " (305mm) | 150mm |
| 4 " (102mm) | 3 "(76.2mm) | 4 " (102mm) | 180mm |
| 6 " (152mm) | 6 " (152mm) | 200mm |
| 8 " (203mm) | 8 " (203mm) | 250mm |
| 9 " (230mm) | 10 " (254mm) | 60mm(61mm) | 160mm |
| 10 " (254mm) | 12 " (305mm) | 200mm |
| 2-1/4 " (57.2mm) | 11 " (280mm) | 6 " (152mm) | 240mm |
| 12 " (305mm) | 3-1/2" (89mm) | 8 " (203mm) | 65mm | 150mm |
| 4 " (102mm) | 10 " (254mm) | 200mm |
| 6 " (152mm) | 12 " (305mm) | 70mm | 100m |
| 8 " (203mm) | 4" (102mm) | 8 " (203mm) | 120mm |
| 9 " (230mm) | 10 " (254mm) | 150mm |
| 10 " (254mm) | 12 " (305mm) | 200mm |
| 11 " (280mm) | Other sizes are
available,ID32,ID36,ID38,ID40,ID46,ID48,ID115,ID125etc |
12 " (305mm)
|
Structures choice of Engine Exhaust Flex Pipe:
- Bellow + outer braid liner;
- bellow + inner braid liner + out braid liner;
- Bellow + interlock liner + out braid liner;
- Bellow + inner braid liner + outer braid liner + extension p ;
Appication of Engine Exhaust Flex Pipe:
Engine exhaust flex pipe can be used in the exhaust system of large
vehicles such as trucks, buses, freightliner etc., for the high
temperature portion of the engine exhaust manifold. The exhaust
bellows is installed in the exhaust pipe between the engine exhaust
manifold and the mufller, so that the entire exhaust system is
flexibly coupled, thereby reducing vibration and noise,
facilitating installation and extending the life of exhaust muffler
system.
Packaging and Delivery of Engine Exhaust Flex Pipe
Fast delivery: in 5-8 days
Lead time for new production: No more than 30 days
Shipping terms: EXW FOB CIF
Packing methods: Plastic bag for each product, seaworthy carton and
woven bag with pallet or not.

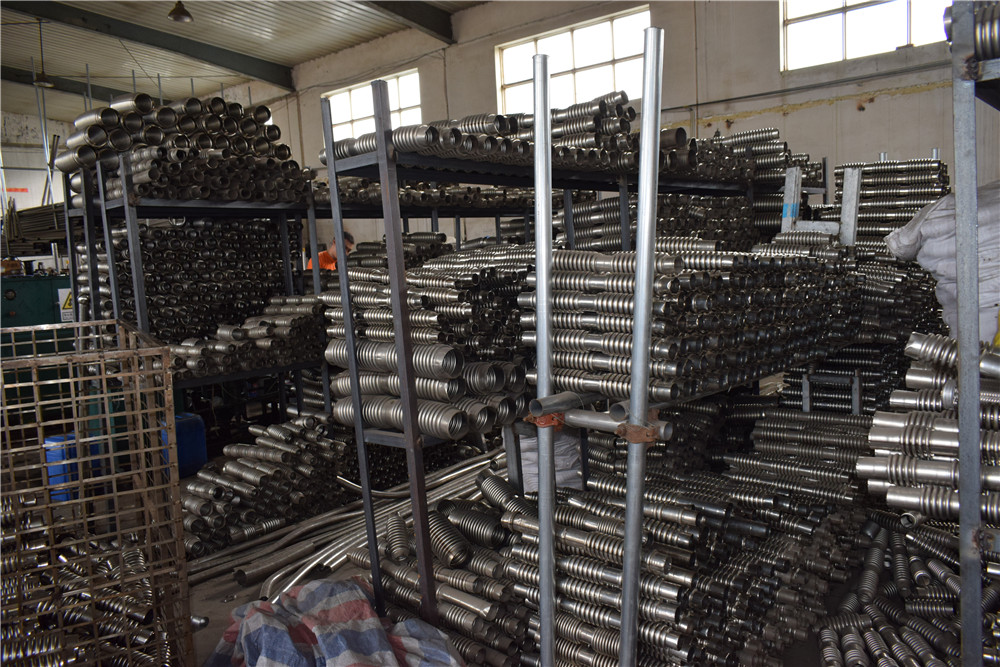

Factory Show:
We supplied exhaust flex pipe in hundreds of designs to fit
customer's requirement. Please kindly inform us your need. The best
offer will be supplied soon.
