Truck Usage ID 3 Inch Stainless Steel 304 201 Exhaust Flex Tube
Flexible couplings are engineered to isolate vibration generated by
your vehicle's engine, thereby relieving stress on the exhaust
system. Flex couplings reduce premature cracking of manifolds and downpipes
and help extend the life of other components. This coupling
features a braided inner liner that protects the bellows from premature failure and is ideal for
eliminating exhaust "whistle".
Materials:
|
Stainless steel 304,201,202 etc.
|
Cap materials:
| Aluminum steel or stainless steel |
Structure choices: |
Bellows+Outer Braid+Nipple extension, Bellows + inner braided liner
+ external braided liner, bellows + interloc liner + external wire
braided , bellow + wire mesh
|
| Features | 1.Automobile exhaust system component 2. Installed between engine and muffler 3. decrease vibration and engine noise 4.To compensate displacement and installation tolerances 5. Smooth inner surface to ensure waste gas to convey the back part 6.To Bear load |
Application: | Truck, buses, off-road, industrial equipment etc. |
Specification
| Inner Diameter (ID) | Flex Length(L) | With nipple Overall Length(L) |
| 1-3/4” (45mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 48mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 2”(50.8mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 54mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 2-1/4”(57.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 2-1/2”(63.5mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 3”(76.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| Note: Customized size are available |

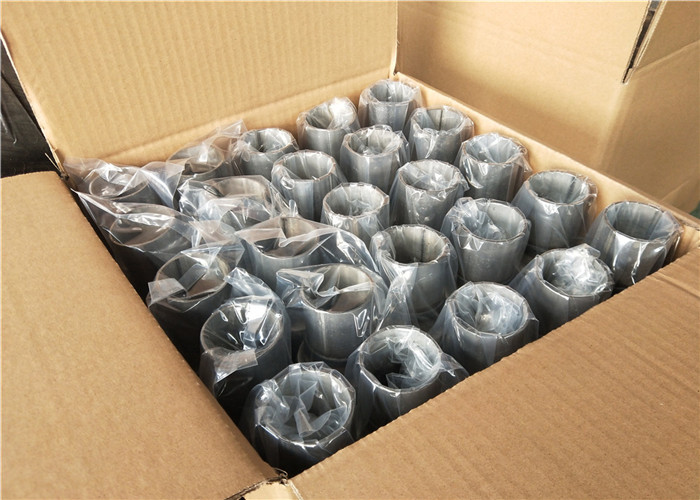

Packing and delivery:
Plastic bag + seaworthy carton
Lead time: 5-8 days if stocks available, otherwise depends on the
purchased quantity.
