3" Titanium V-Band Assembly 2 Flanges 1 Clamp Stainless Steel
Exhaust Clamp

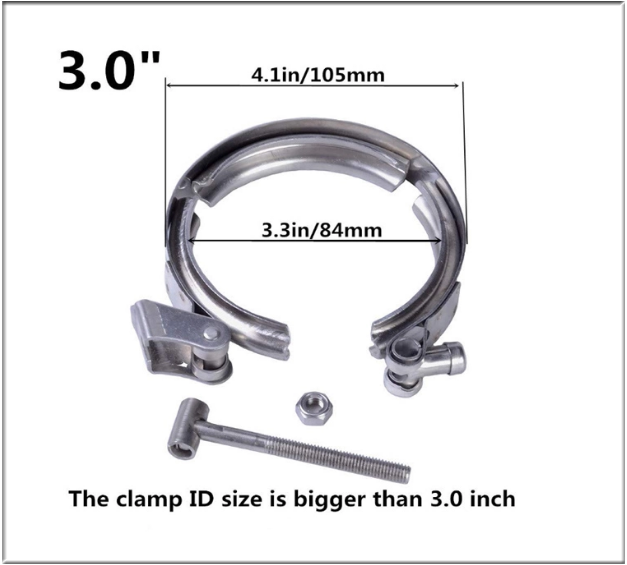

Stainless Steel V-band Assembly Clamp is for the customers looking
to build their own exhaust system. It has been designed to
specifically work with 3" Titanium V-Band flanges so you don't have
to hunt for a compatible clamp anywhere else. Stainless steel exhaust clamp kit - Complete V-band kit is ideal
for performance exhaust systems, downpipes, catback exhausts, turbo
back exhausts and more. High quality CNC stainless steel flanges
provide a leak free exhaust seal with no gasket required. The
V-band clamp allows you to quickly connect and disconnect exhaust
pipes without having to fumble with nuts or bolts.
Advantage: Rapid closing and opening; Captive closure components;
Significantly shorten the installation time.
| Model 1 | VBK | Includes1 V band clamp and 2 Flanges (Flanges can be M/F style or
FF style) Quick release model and Standard Model |
| Model 2 | VBC | Includes 1 V band clamp |
| M/F | Male and Femal Flanges with Grooves |
| FF | Flat flanges |
Specification:
Size(Inch) |
Flange ID(mm) |
Exhaust pipe OD(mm) |
Materials |
| 1.5 | 38.9 | 38.1 | Stainless steel 304 |
| 1.75 | 45.3 | 44.5 |
| 2 | 51.6 | 50.8 |
| 2.25 | 57.9 | 57.1 |
| 2.5 | 64.3 | 63.5 |
| 2.75 | 70.6 | 69.8 |
| 3 | 77 | 76.2 |
| 3.25 | 83.3 | 82.5 |
| 3.5 | 89.7 | 88.9 |
| 3.75 | 96.4 | 95.6 |
| 4 | 102.4 | 101.6 |
| 4.5 | 115.1 | 114.3 |
| 5 | 127.8 | 127 |
| 6 | 153.2 |
152.4
|
Application & Feature:
When you're making a downpipe, catback exhaust, turbo back exhaust,
mid pipe, or up pipe for your car, truck, or other vehicle this
V-band kit is ideal for connecting different pipe sections.
Conventional exhaust flanges multiple nuts, bolts, washers and a
gasket. A V-band kit eliminates all of these and allows for a
connection with a single nut.
EASY ON, EASY OFF - A V-band kit allows you to connect or
disconnect sections of your exhaust by removing a single nut.
Conventionally exhaust flanges involve multiple bolts, washers,
nuts, and gaskets. Save time and have piece of mind that your
exhaust sections will stay sealed and secured with a 3" V-band kit.
Installation of V-band Clamp:
Packaging and delivery:
Package method: Plastic bag + carton or as clients's request
Delivery time:in 3 days if stocks available, new production time
depends on ordered quantity
Payment terms:T/T (30% as deposit, balance shall be paid against
the copy of bill.)
Shipping terms: FOB, CIF, CNF DDP etc.
