Interlock Braided 76.2mm×152mm Stainless Steel Exhaust Flex Pipe

Ask Lasest Price
Brand Name :
Model Number :
Price :	USD$ 1.5--8.99 /PC
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	80000PCS/MONTH
Delivery Time :	10-14 DAYS

Add to Cart

Product Details
Company Profile

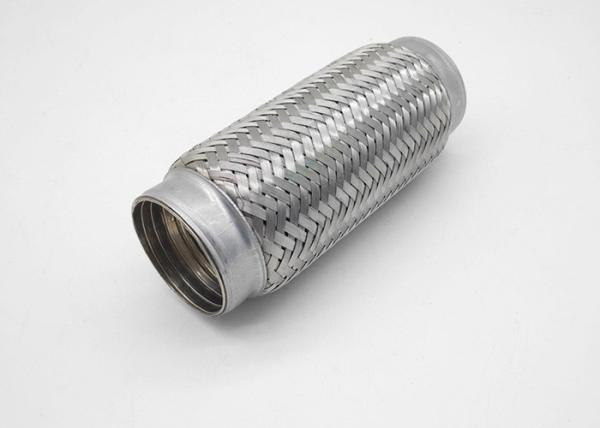

Interlock Braided 76.2mm×152mm Stainless Steel Exhaust Flex Pipe

Stainless Steel Auto Engine Parts Flexible Bellows with Interlock Braided ,Flex Exhaust Flexible Pipe

Specifications of the flexible exhaust pipe:

Nominal Inside Diameter I.D.	Overall Length O/L	Nominal Inside Diameter I.D.	Overall Length O/L	Nominal Inside Diameter I.D.	Overall Length O/L
1-3/4(45mm)	4”(102mm)	2-1/2”(63.5)	4”(102mm)	43mm	120mm
	6”(152mm)		6”(152mm)		165mm
	8”(203mm)		8”(203mm)		180mm
	9”(230mm)		9”(230mm)	50mm	120mm
	10”(254mm)		10”(254mm)		165mm
	11”(280mm)		11”(280mm)	54.5mm	120mm
	12”(305mm)		12”(305mm)		150mm
2”(51mm)	4”(102mm)	3”(76.2mm)	4”(102mm)		180mm
	6”(152mm)		6”(152mm)		200mm
	8”(203mm)		8”(203mm)		250mm
	9”(230mm)		9”(230mm)	60mm	160mm
	10”(254mm)		10”(254mm)		200mm
	11”(280mm)		11”(280mm)		240mm
	12”(305mm)		12”(305mm)	65mm	150mm
2-1/4”(57.2mm)	4”(102mm)	3-1/2”(89mm)	6”(152mm)		200mm
	6”(152mm)		8”(203mm)	70mm	100mm
	8”(203mm)		9”(230mm)		120mm
	9”(230mm)		10”(254mm)		150mm
	10”(254mm)		12”(305mm)		200mm
	11”(280mm)	Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125...
	12”(305mm)

Brief Introduction :

The flexible exhaust pipe bellow is a flex. piece of pipe that allows the exhaust system some flexibility. Flex. Pipe are an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex. Pipe protects your exhaust system from breakage and more noise. Without that extra flexibility , the rocking motion would crack the exhaust system and cause a loud leak.

Our Exhaust Flexible Bellows Types:

A : Bellows + Outer Braid

B: Bellows + Interlock + Outer Braid

C: Bellows + Outer Braid + Inner Braid

D: Bellows + Outer Mesh

E: Type A/B/C + Nipples (extension tube)

F: Type D + Nipples

Packing and Delivery of Exhaust Flexible Pipe:

Other Components:

Contact Us:

Product Tags:
