100mm - 600mm Galvanized Steel Rapid Lock Modular Ducting Clamp For
Woodworking Dust Collection System
Rapid lock modular ductwork is a complete ventilation system of
galvanised ducts and fittings with diameter range from Ø 80 to Ø
600 mm with rolled edge for industrial dust extraction systems.
Industrial dust extraction ducting is used in welding industry,
metalworking industry, woodworking industry, energy industry,
ceramic, food and pharmaceutical industry. Installation
air-tightness is crucial for this type of systems, since any kind
of leakage may cause dust get outside of the ductwork and reduce
dust extraction efficiency.
Quick-release clamp connects rolled up components joints, ensuring
fast and easy assembly and disassembly, no screw, rivets or welding
necessary. The time-saving and economic solution, since taking
apart the quick lock duct system and putting it back together does
not include any specialised tools, welding, duct tape or any other
time- consuming joining methods etc., what is more we can reuse the
same components of the installation.
Features of modular ducting clamp
1. Strong longitudinal seams that are butt-welded to ensure
airtightness of the installation.
2. Quick and easy assembly.
3. Quick disassembly and putting together system again - reuse and
reassemble components.
4. Flexibility – adaptable connection to existing ventilation
systems.
5. No rivets, screws, or welding required.
6. Perfect solution both for new and existing systems in need of
modifications.

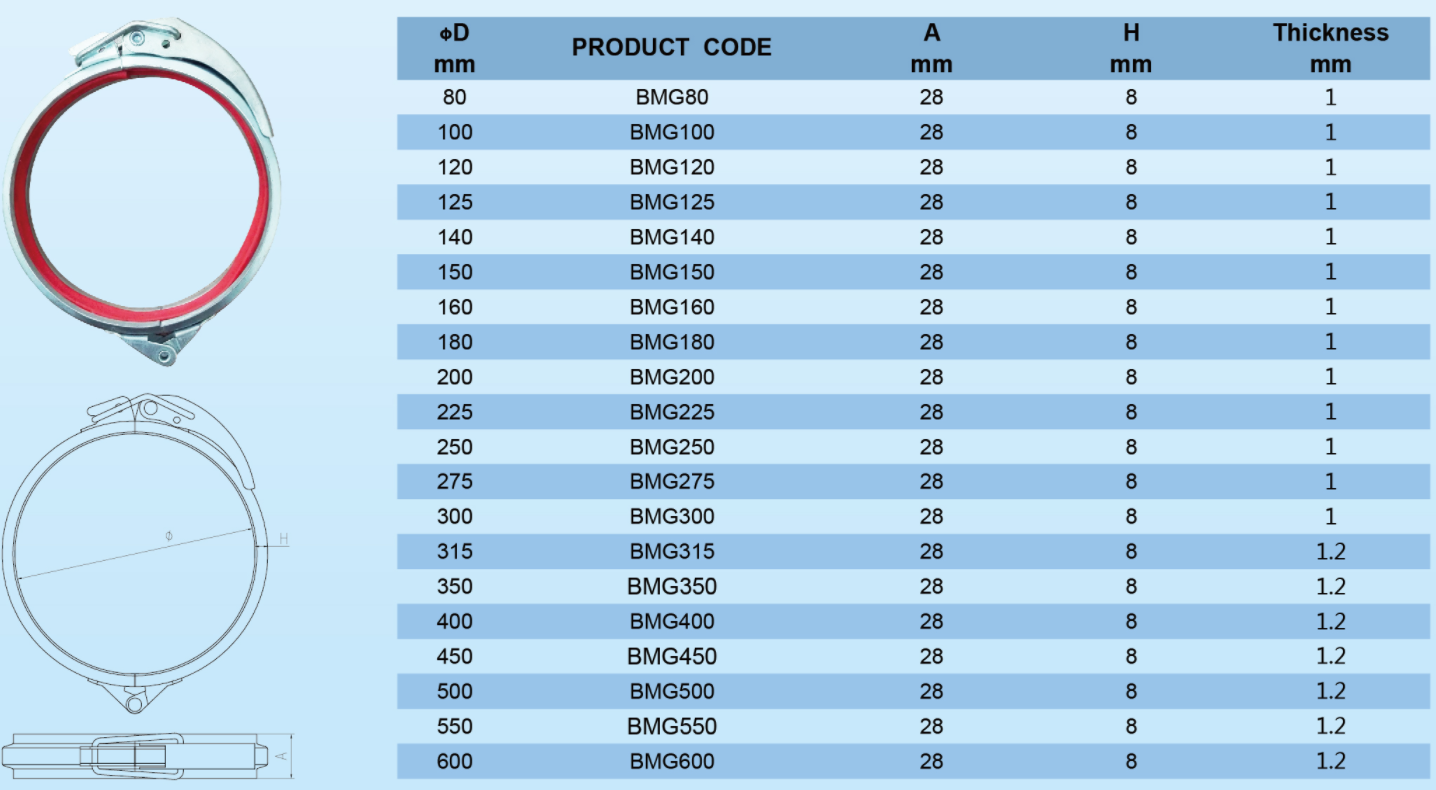

Specification of modular ducting clamps: OEM design and sizes are
available as drawing.
Application of quick release clamp:
Dust collection ductwork
Industrial ducting
Oil mist & cutting fluid applications
High vacuum pipe fittings
Mild steel duct
Woodworking
Coofee roasting
Concrete & cement production
Grain processing
Polymer and plastic processing
Packaging and delivery time of lever clamp:
For multi-sizes, we choose wooden case to pack clamps. Smaller
sizes in bigger sizes to save space.
For unitary size, we use carton box.
5pcs per bundle. Tidely put in crates layer by layer
Lead time: in 7 days if stocks available. otherwise against the
order quantity.
Relative products from us:
Quick lock modular ducting system consists of butt-welded pipes,
bends, tees, reducers, adapters and sliding dampers as well as the
most important element namely - quick lock and release clamps which
ensure strong and airtight connection of components. The whole
modular system has rolled-up lip at 90-degree angle, about 5-7 mm
height.
