160mm Ajustable Slim Pull Ring Galvanized Carbon Steel Pipe
Connection Clamp With Lever Fasteners
Product description:
The slim clamping rings consist of galvanized carbon steel or
stainless steel and connect pipe segments or pipe components with
screws or lever fasteners. They are suitable for diameters ranging
from 80mm to 600mm. Profiles could be manufactured according to
specification provided by customers.
Features of slim pull ring
- With lever fasteners for quick lock and release, which save much
working time
- Good Performance but low cost

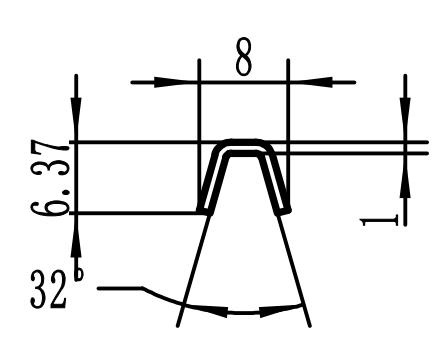

Specification of slim pull ring:
OEM structures are available as request
| ɸDiameter mm | Product code | A mm | H mm | Thickness mm |
| 80 | BMG80 | 8 | 6.37 | 1 |
| 100 | BMG100 | 8 | 6.37 | 1 |
| 120 | BMG120 | 8 | 6.37 | 1 |
| 125 | BMG125 | 8 | 6.37 | 1 |
| 140 | BMG140 | 8 | 6.37 | 1 |
| 150 | BMG150 | 8 | 6.37 | 1 |
| 160 | BMG160 | 8 | 6.37 | 1 |
| 180 | BMG180 | 8 | 6.37 | 1 |
| 200 | BMG200 | 8 | 6.37 | 1 |
| 225 | BMG225 | 8 | 6.37 | 1 |
| 250 | BMG250 | 8 | 6.37 | 1 |
| 275 | BMG275 | 8 | 6.37 | 1 |
| 300 | BMG300 | 8 | 6.37 | 1 |
| 315 | BMG315 | 8 | 6.37 | 1.2 |
| 350 | BMG350 | 8 | 6.37 | 1.2 |
| 400 | BMG400 | 8 | 6.37 | 1.2 |
| 450 | BMG450 | 8 | 6.37 | 1.2 |
| 500 | BMG500 | 8 | 6.37 | 1.2 |
| 550 | BMG550 | 8 | 6.37 | 1.2 |
| 600 | BMG600 | 8 | 6.37 | 1.2 |
Application of quick release clamp:
- Dust Removal, some factories produce a lot of dust in the
workshop,which requires special dust removal devices, where the
wind flow is large and the modular pipe system can be used. Rapid
lock clamp plays the important role in installation.
- Bulk material handing, some of the factory production process,the
need to transport loose particles, especially the small proportion
of such foam plastic grain using modular piping system, lever clamp
is low cost, good effect, in addition, it is more convenient to
maintain and save working time.
Except the usage of pipes and ducts, clamps are widely applied in
vehicles, ships, diesel engine. gasoline engine, machine tools,
fire protection etc. All kinds of mechanical equipment, chemical
equipment, ordianary ruber hose,n ylon plastic hose, fabric hose,
outlet connetion fastening and sealing
Packaging and delivery time of lever clamp:
For multi-sizes, we choose wooden case to pack clamps. Smaller
sizes in bigger sizes to save space.
For unitary size, we use carton box.
5pcs per bundle. Tidely put in crates layer by layer
Lead time: in 7 days if stocks available. otherwise against the
order quantity.
Relative products from us:
We have much advantage on making of modular ducting for ventilation
system, air fitltration system and vacuum conveying system. Clamp
is our mature and hot sale product. Dozen designs of clamps for
clients' choice like quick lock lever clamp, adjustable clamp,
light duty or heavy duty bolted clamp, U band and V band clamp,
Slim tension clip ring, wide pull ring etc. Not limited to clamps,
we make pressed elbow, sliding damper, manual or pneumatic blast gate, suspension
bracket, butterfly damper, Trousers, duct length, Y branches, Tee piece, reducer etc.
