    80mm Galvanized Steel Clamps Sheet Metal Pipe Quick Release With Handle

    Ask Lasest Price
    Brand Name :
    Model Number :
    Price : USD$ 6.10 /PC
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000PCS/MONTH
    Delivery Time : 10-14 DAYS
    • Product Details
    • Company Profile

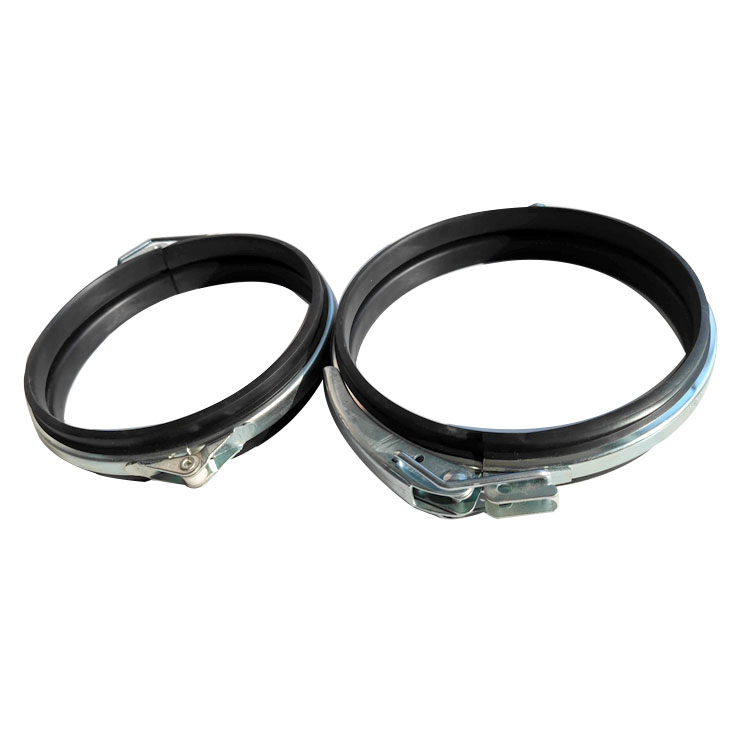

    80mm Galvanized Steel Clamps Sheet Metal Pipe Quick Release With Handle

    Sheet Metal Pipe Quick Release Galvanized Steel Clamps with Handle


    Description:


    The Quick Release Galvanized Steel Clamps with Handle are made of carbon steel with superior white galvanization on the surface, thickness is from 1.0mm to 1.2mm, bandwidth 28mm, customized width is acceptable too, the handle is designed with quick release lock system, make the connection easy and quickly, save more time.


    MaterialCarbon steel with zinc plated or stainles steel
    LockQuick release pull ring latch
    Diameter80mm to 600mm

    This is a new design quick release latch air duct clamp developed by Yunpeng, also called the bolted duct clamp, usually it’s used for connecting 1.0mm/1.2mm modular ducts,like modular bends, straight pie, but also applied to 0.5-0.8mm HVAC system ventilation ducting, particle transport system, animal feed industry pipework system which has lipped pipe ends, another quick release lever adjustable duct clamp is also available.

    There is a V groove at the clamping joint of the pipe clamp which makes the operation convenient and the clamping very tight.


    Specification:



    Galvanized Steel Connecting Pipe Clamp with Bolt and Pin for Dust Collection

    Φ Diameter mmProduct CodeA mmH mmThickness mm
    80BMG802881.0
    100BMG1002881.0
    120BMG1202881.0
    125BMG1252881.0
    140BMG1402881.0
    150BMG1502881.0
    160BMG1602881.0
    180BMG1802881.0
    200BMG2002881.0
    225BMG2252881.0
    250BMG2502881.0
    275BMG2752881.0
    300BMG3002881.0
    315BMG3152881.2
    350BMG3502881.2
    400BMG4002881.2
    450BMG4502881.2
    500BMG5002881.2
    550BMG5502881.2
    600BMG6002881.2

    Features:


    1. Practically leak-proof

    2. Durable, long time anti-rust

    3. Easilly and quickly connection with pipe

    4. Full Diameter, from 80mm to 600mm, and customized size welcome if bigger than 600mm.



    Packing:



    Other clamps:



    Company:


    We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends / segmented bends( R=1.5D, R=2D , material involving hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from 80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.
