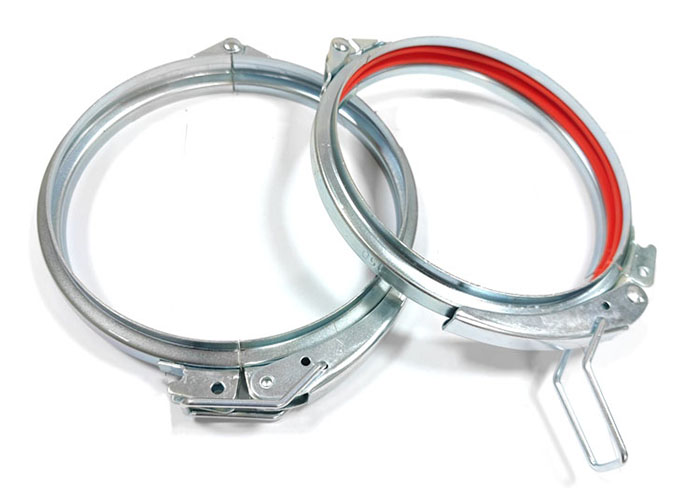

ODM OEM Ductwork Galvanized Pipe Clamp With Red Rubber Gasket Seal
Application:
The Ductwork Galvanized Pipe Clamp With Red Rubber Gasket Seal are mainly used for Dust extraction , HVAC system , particle
transport,animal feed industry pipework system, etc.
Description:
The Galva. pipe clamp are made of carbon steel with superior white
galvanization on the surface, thickness is from 1.0mm to 1.2mm,
bandwidth 28mm, customized width is acceptable too, the handle is
designed with quick release lock system, make the connection easy
and quickly, save more time.
| Material | Carbon steel with zinc plated or stainles steel |
| Lock | Quick release pull ring latch |
| Diameter | 80mm to 600mm |
Specification:
Galvanized Steel Connecting Pipe Clamp with Bolt and Pin for Dust
Collection |
| Φ Diameter mm | Product Code | A mm | H mm | Thickness mm |
| 80 | BMG80 | 28 | 8 | 1.0 |
| 100 | BMG100 | 28 | 8 | 1.0 |
| 120 | BMG120 | 28 | 8 | 1.0 |
| 125 | BMG125 | 28 | 8 | 1.0 |
| 140 | BMG140 | 28 | 8 | 1.0 |
| 150 | BMG150 | 28 | 8 | 1.0 |
| 160 | BMG160 | 28 | 8 | 1.0 |
| 180 | BMG180 | 28 | 8 | 1.0 |
| 200 | BMG200 | 28 | 8 | 1.0 |
| 225 | BMG225 | 28 | 8 | 1.0 |
| 250 | BMG250 | 28 | 8 | 1.0 |
| 275 | BMG275 | 28 | 8 | 1.0 |
| 300 | BMG300 | 28 | 8 | 1.0 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Features:
1. Practically leak-proof
2. Durable, long time anti-rust
3. Easilly and quickly connection with pipe
4. Full Diameter, from 80mm to 600mm, and customized size welcome
if bigger than 600mm.
Other types of clamps:
Company:
We develop and manufacture modular ducting, circular ductwork in
galvanised steel, mild steel and stainless steel, along with a full
range of ancillary fittings and components. Our ducting system
adopts the flanged/lip edge quick connection way, allowing rapid
installation with no special tools needed. Products including
pressed bends / segmented bends( R=1.5D, R=2D , material involving
hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless
steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from
80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight
duct pipe, rapid lock pull ring , wide rings, slim rings,
flanges,sliding dampers/blast gate in manual and pneumatic,
butterfly dampers, clip bands, branch and trouser pieces, throttle
valves, diverters, pipe couplings, and many other customized clamps
etc.
