Good introduction:

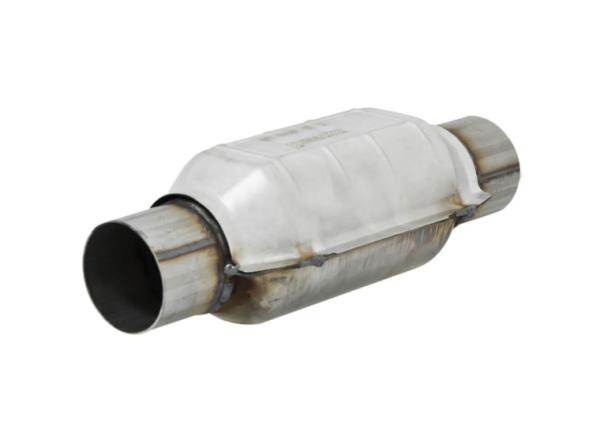

Universal catalytic converters are designed to meet emissions
requirements on a wide variety of applications. These high quality
catalytic converters feature stainless steel outer shell
construction for maximum durability. The internal substrate
material and precious metal loading have been carefully engineered
for maximum efficiency. Universal catalytic converters require
welding and/or fabrication and should be installed by qualified
technicians.
Features:
- Stainless Steel Construction
- Available for a wide variety of applications
- Excellent flow characteristics
Spcification:
| Product type | Calatylic converter |
| Body length | 12.75 inches |
| Body shape | Round shape |
| Body width | 5" |
| Emission Code | 2" |
| Heat shield | Yes |
| Inlet diameter | 2" |
| Inlet quantity | 1 |
| Inlet connection type | Slip-fit |
| Materials | Stainless steel 409 / 304 |
| Max engine size | 5.9 L |
| Max gross vehicle weight | 5500kgs |
| Outlet diamter | 2" |
| Outlet quantity | 1 |
| Type | Three-way |
| Substrate materials | Ceramic |
A three-way catalytic converter has three simultaneous tasks.
- Reduction of nitrogen oxides to nitrogen and oxygen: 2NOx → xO2 +
N2
- Oxidation of carbon monoxide to carbon dioxide: 2CO + O2 → 2CO2
- Oxidation of unburnt hydrocarbons (HC) to carbon dioxide and water:
CxH2x+2 + [(3x+1)/2]O2 → xCO2 + (x+1)H2O.
These three reactions occur most efficiently when the catalytic
converter receives exhaust from an engine running slightly above
the stoichiometric point. Three-way catalysts are effective when the engine is operated
within a narrow band of air-fuel ratios near stoichiometry, such
that the exhaust gas oscillates between rich (excess fuel) and lean
(excess oxygen) conditions. Three-way catalytic converters can store oxygen from the exhaust
gas stream, usually when the air-fuel ratio goes lean.
Application
Although catalytic converters are most commonly applied to exhaust
systems in automobiles, they are also used on electrical generators, forklifts, mining equipment, trucks, buses, locomotives, and motorcycles. They are also used on some wood
stoves to control emissions. This is usually in response to government regulation, either through direct environmental regulation or through health
and safety regulations.
Catalytic converters require a temperature of 800 degrees
Fahrenheit (426 °C) to efficiently convert harmful exhaust gases
into inert gases, such as carbon dioxide and water vapor.
Therefore, they are placed as close to the engine as possible.
Packaging and delivery
| Package | 1pc/white paper box, 10pcs/master carton |
| Delivery method | By express, By air, By sea |
| Delivery time | Depends on order quantity |
| Shipment terms | EXW, FOB CHINA, CNF CHINA, CIF CHINA |
Related products
Stainless steel / aluminized exhaust resonator and muffler, exhuast
flex pipe and clamps in dozen models and dimensions for customer's
choice.
Welcome your inquiry if you are interested in our products.
