Universal Stainless Steel Exhaust Muffler.Stainless Steel 409
Center Muffler Races 12, Inlet/Outlet 2,5" (63mm)
Stainless T409, The most common material in performance exhaust
systems is T409, which does not have good resistance due to lack of
chromium to withstand the cold weather and after just one winter
there are signs of corrosion on the surface because of salt.
T304 is stainless steel of highest quality from stainless steel
materials used in automotive industry, which is used to produce
tailpipe exhaust, exhaust fittings and other exhaust components
wher high strength and durability are required. T304 material is
non-corrosive because it contains more than 20% chromium and 10%
nickel in its composition, but due to lack of iron content it
changing color to gold at high temperatures. In fact, the ferrous
metal content is so low that magnets won't stick to it, making the
indentification of T409 and T304 very easy.
Features of muffler / silencer
- Maximum power and acceleration: straight through, mandrel bent core
increases horsepower and torque
- Maximum fuel economy: maximum flow, reduces backpressure
- Maximum sound quality: straight through core with high temperature
acoustical fiber filling
- Maximum durability: welded inside and outStainless steel
Specification of aftermarket exhaust muffler
Performance mufflers are 100% stainless steel or high quality
aluminized steel, and lap-joint welded for solid construction and
rugged reliability even in the most extreme conditions. They
feature a free-flowing, straight-through perforated stainless steel
core; stainless mesh wrap and acoustical fiber fill to deliver that
smooth, deep toneThe Mufflers are packed tight with this acoustical
material to ensure long life and no sound degradation over time.
| MUFFLER SHAPE: OVAL SHAPED |
| MODEL | SIZE | BODY LENGTH | TOTAL LENGTH | DESCRIPTATION |
| YPMOF-C225 | 4"X9" | 22" | 28" | OFFSET2.25"/CENTER 2.25" |
| YPMOF-C300 | 4"X9" | 22" | 28" | OFFSET3"/CETNER 3" |
| YPMOF-C250 | 4"X9" | 22" | 28" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C250 | 5"X8" | 24" | 30" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C300 | 5"X8" | 24" | 30" | OFFSET3"/CENTER 3" |
| YPMOF-C225 | 4"X9" | 14" | 20" | OFFSET2.25"/CENTER 3" |
| YPMOF-C250 | 4"X9" | 14" | 20" | OFFSET2.5"/CENTER 2.5 |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF200 | 4"X9" | 14" | 20" | OFFSET2"/OFFSET2" |
| YPMOF-OF225 | 4"X9" | 14" | 20" | OFFSEST2.25"/OFFSET2.25" |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF225 | 5"X8" | 18" | 24"" | OFFSET2.25"/OFFSET2.25 |
| YPMOF-OF250 | 5"X8" | 18" | 24" | OFFSET2.5"/OFFSET2.25" |
| YPMOF-OF300 | 5"X11" | 22" | 28" | OFFSET3"/OFFSET3" |
| YPMC-DUAL225 | 5"X11" | 22" | 28" | CENTER2.25"/DUAL2.25" |
| YPMC-DUAL250 | 5"X11" | 22" | 28" | CENTER2.5"/DUAL2.5" |
| YPMC-DUAL300 | 5"X11" | 22" | 28" | CENTER3"/DUAL3" |
Custom specification are welcome.

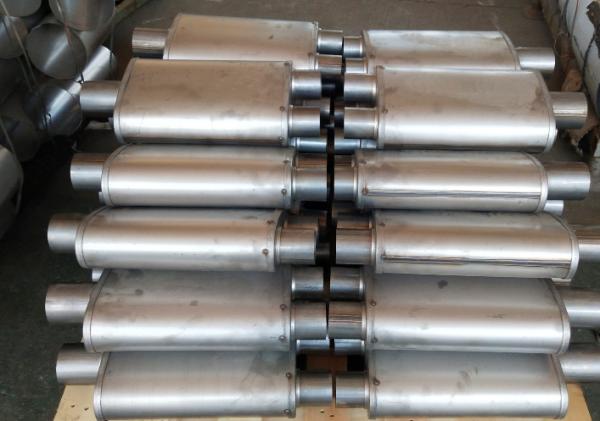

Warehouse of exhaust exhaust muffler
Packaging and shipping of car exhaust muffler:
Plastic foam packed each product, pallet or wooden case. Any
special packing, discussed in advance.
Particular logo is acceptable.
Delivered in 7 days if having stocks. Otherwise depends on our
production schedule.
Shipment terms: EXW, FOB, CNF, CIF DDP etc.
Payment terms: T/T (30% as deposit, the balance against the copy of
B/L )
Our service:
We are a leading producer of universal mufflers and carry a variety
of sizes, styles and performance levels to ensure you can find the
right muffler for your application. Replace or repair your exhaust
system to stock or performance levels. Built with solid
construction and rugged reliability. OEM/ODM are also available
according to drawing or samples.
Please be free to contact me for details. Thanks.
