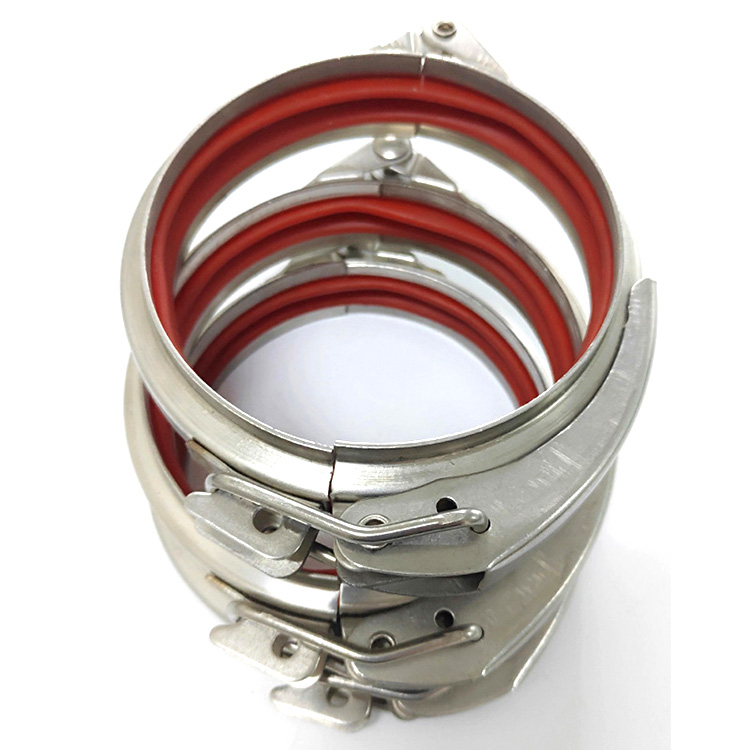

1mm Thickness Duct System SS304 Quick Release Pipe Clamp Rapid Lock
v Band Clamp
Product Description:
Material: stainless steel 304
Wall Thickness: 1.0mm for sizes below 315mm, 1.2mm for above 315mm
Use for food grade ducting pipeline.
Available diameters: 80mm-600mm or 3"-24"
Our most cost-conscious clamps are our "quick release duct clamps"
which are stainless steel clamps. Quick release duct clamps are
used to secure metal duct products to industrial equipment dealing
with dust, fume, exhaust, and abrasives collection and/or transfer
and such ductwork system. Join duct and fittings with quick release
duct clamps for faster connect and disassembly.
Specification:
Our standard available sizes are from 80mm(3") to 600mm (24") ,
customized design and size requirement are welcome.

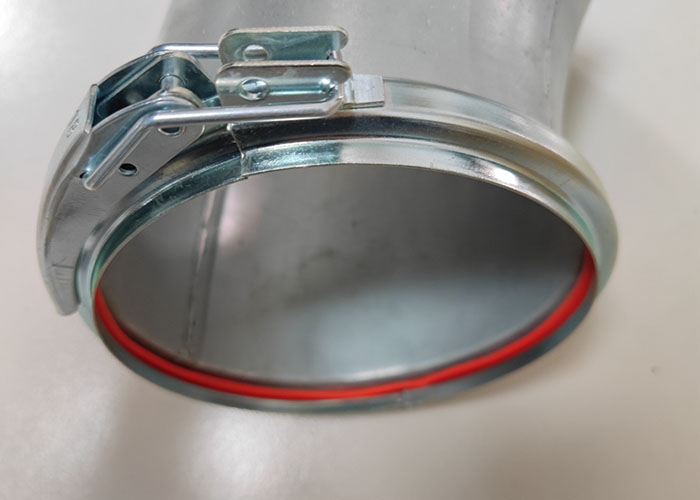

Galvanized steel quick lock air duct clamp for dust collection
system
|
| Φ Diameter mm | Product Code | A mm | H mm | Thickness mm |
| 80 | BMG80 | 28 | 8 | 1.0 |
| 100 | BMG100 | 28 | 8 | 1.0 |
| 120 | BMG120 | 28 | 8 | 1.0 |
| 125 | BMG125 | 28 | 8 | 1.0 |
| 140 | BMG140 | 28 | 8 | 1.0 |
| 150 | BMG150 | 28 | 8 | 1.0 |
| 160 | BMG160 | 28 | 8 | 1.0 |
| 180 | BMG180 | 28 | 8 | 1.0 |
| 200 | BMG200 | 28 | 8 | 1.0 |
| 225 | BMG225 | 28 | 8 | 1.0 |
| 250 | BMG250 | 28 | 8 | 1.0 |
| 275 | BMG275 | 28 | 8 | 1.0 |
| 300 | BMG300 | 28 | 8 | 1.0 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |

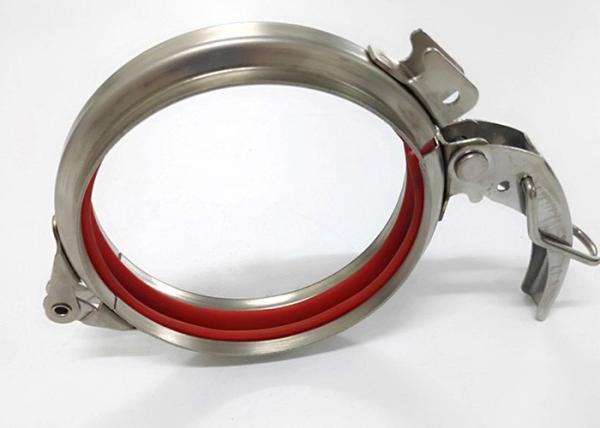

BMG TYPE:
LMG TYPE:
Our another popular similar duct clamp are provided with adjustable
bolt lever.
Application:
Quick lock duct clamp could be used for standard modular ducting
for dust collection, dust extraction, air filtration and particle
transport system.
And any other pipeline which needs the air tight requirement.
Packing of air duct clamp:
Cartons or wooden cases for mixed sizes.
We accept many OEM clamp production:
Company:
We develop and manufacture modular ducting, circular ductwork in
galvanised steel, mild steel and stainless steel, along with a full
range of ancillary fittings and components. Our ducting system
adopts the flanged/lip edge quick connection way, allowing rapid
installation with no special tools needed. Products including
pressed bends / segmented bends( R=1.5D, R=2D , material involving
hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless
steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from
80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight
duct pipe, rapid lock pull ring , wide rings, slim rings,
flanges,sliding dampers/blast gate in manual and pneumatic,
butterfly dampers, clip bands, branch and trouser pieces, throttle
valves, diverters, pipe couplings, and many other customized clamps
etc.
Contact Becky for more information if you have requirement on this
clamp:
