5" GI Materials Quick Lock Ductwork Clamp 125mm Rubber Linned Pipe
Clamp Ring For Dust Extractor
Quick lock ductwork clamp is equipped with the handle mechanism. It is specially designed
for duct systems made from 1 and 1.2 mm steel plate. The clamps are
made of zinc plated or stainless steel 304 materials, which are
rust proof for bad circumstance. It features quick locking and
release of duct fittings and save much working time. Each
adjustable quick lock clamp includes a pin for securing the handle

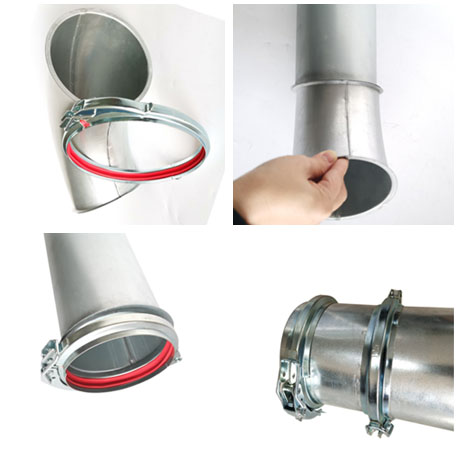

closed. In addition, the clamps have a rubber lining in the inner
circle of the clamp. This rubber lining creates a seal when the
clamp handle is closed, joining the two pipes (or pipe and elbow,
blastgate, etc.) as one.
Key Specifications/ Special Features:
| Product name | Quick Lock Ductwork Clamp With Rubber Linned For Dust Extractor |
| Diameter scope: | 80-600mm |
| Usage: | Used for connect 0.7mm-1.2mm wall thick round duct, pipe, tube in
stainless steel or galvanize steel |
| Material choice | Galvanized steel, carbon stell with zinc plated, stainless steel
304 |
| Application | Low pressure or Medium pressure conveying system like Fume
extraction, Materials handling, Dust collection, vaccum conveying |
| Main Market | Euriope, USA. Oceania, Southeast Asia etc. |
Usage of quick lock ductwork clamp:
The use of quick lock and release clamping ring creates a sealed
joint and reduces installation time to almost half that of
conventional methods of ducting. It provide optimal protection for
pipe applications. The lever machenism designs are for applications
where joints need to be closed and released frequently and quickly.
The red rubber ring plays the role of sealing.
Features of quick lock duct clamp with gasket:
- Speed Install,The Used Duct Of Quick Release Pipe Clamp With Handle
Inner Rubber Seal can quickly connect the ducts of all kinds by
handle.You only need to push the handle which the ducts are locked.
- Good Sealing,The Used Duct Of Quick Release Pipe Clamp With Handle
Inner Rubber Seal have high sealing because innering rubber seal.
- Strong Anticorrosion,Because the Material of Used Duct Of Quick
Release Pipe Clamp With Handle Inner Rubber Seal is stainless
steel,so the anticorrosion is very high.
Specification of duct clamp:
| ΦD/mm | A/mm | H/mm | Thickness/mm |
| 80 | 28 | 8 | 1 |
| 100 | 28 | 8 | 1 |
| 120 | 28 | 8 | 1 |
| 125 | 28 | 8 | 1 |
| 140 | 28 | 8 | 1 |
| 150 | 28 | 8 | 1 |
| 160 | 28 | 8 | 1 |
| 180 | 28 | 8 | 1 |
| 200 | 28 | 8 | 1 |
| 225 | 28 | 8 | 1 |
| 250 | 28 | 8 | 1 |
| 275 | 28 | 8 | 1 |
| 300 | 28 | 8 | 1 |
| 315 | 28 | 8 | 1.2 |
| 350 | 28 | 8 | 1.2 |
| 400 | 28 | 8 | 1.2 |
| 450 | 28 | 8 | 1.2 |
| 500 | 28 | 8 | 1.2 |
| 550 | 28 | 8 | 1.2 |
| 600 | 28 | 8 | 1.2 |
We produce different designs of clamps in light duty, standard duty
and heavy duty according to customers' usage. Our clamps includ
lever clamp, adjustable clamp, hose clamp, bolted clamp, band clip,
slim / wide tension clip, hanging bracket, saddle clamp, U type
clamp etc. We are committed to all kinds of metal pipe connecting
clamps.
Welcome your OEM inquiry.
Packing and delivery of rapid lock pipe clamp:
Package method:Carton box for small quantity. Wooden case for big
quantity
Delivery time:in 3 days if stocks available, new production time
depends on ordered quantity
Payment terms:T/T (30% as deposit, balance shall be paid against
the copy of bill.)
Shipping terms: FOB, CIF, CNF DDP etc.
About us:
As a leading manufacturer of metal products, we aim to supply the
perfect products to customers. Today we are more specialized on
the pipe fittings, especially duct clamps, pipe clamps, tube clamps
and relative products like tube, elbow, tee, damper and so on.
We are pleased to offer you one-stop service from design,
manufacturing, technology solution, and market developing. We win
good
reputation worldwide with our principle that put customer’s
satisfaction on top priority.
Modular ducting Industries that use our ducting are:
* Air Conditioning, * Fume Extraction, * Air Compressor Heat
Recovery, * Fumes extraction, * Commercial Kitchen Cooking, * Heat
Recovery
* Exhaust Flues, * Marine Applications, * Oil & Gas Industry, *
Plating & Anodizing, * Education — Schools & Colleges
Materials Handling
* Agricultural, * Cement Processes, * Dust Control, * Fertilizer
Manufacturing, * Grain Handling, * Foodstuff Manufacturing, *
Manufacturing, * Plastics Manufacturing, * Pneumatic Conveying, *
Pharmaceutical Production, * Paper, * Textiles, * Packaging, *
Timber Industry, * Mining & Mineral Processing. etc.
