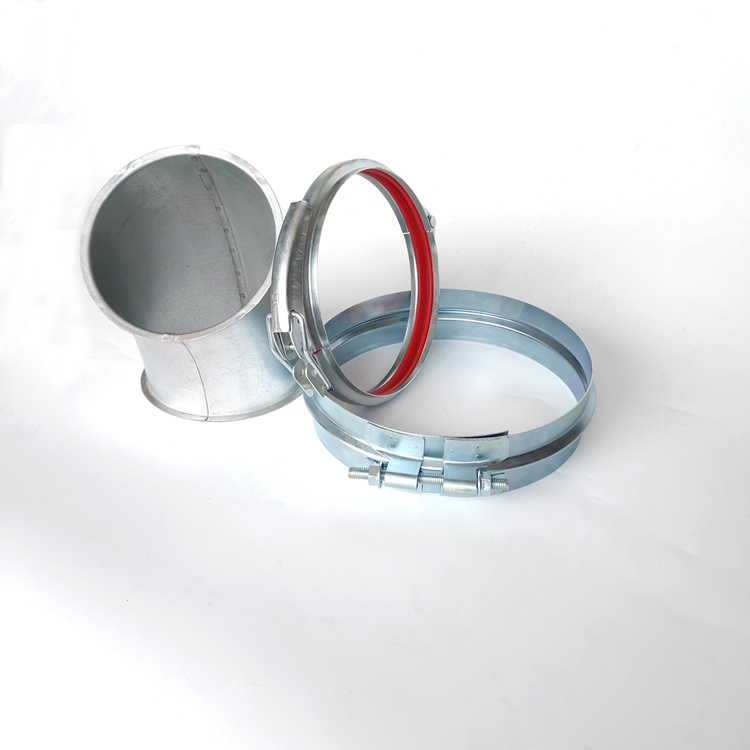

1.0mm round duct galvanized steel lever lock ring
Product Description:
Material: Mild Steel or Stainless steel
Band: 28mm
Thickness: 1.0mm
Diameter: DN80-DN600
Round duct galvanized steel lever lock ring provides quick and easy connections for our quick ductwork.
Quick-Fit Ducting is ideal for dust collection and process
ventilation systems, saving time and money on installation, future
relocations, and cleanouts. Clamps come standard with seals and
bridge pin for locking clamp into closed position.
Ring Material: Carbon steel with superior galvanization or stainless steel 304
Pin: Galvanized supplied with galvanized bridge pin. SS supplied with
SS bridge pin.
Gasket: Silicone, EPDM, TFE are optional seal materials for applications
where temperature requires.
Specification:
Our standard available sizes are from 80mm(3") to 600mm (24") ,
customized design and size requirement are welcome.
Galvanized steel quick lock air duct clamp for dust collection
system
|
| Φ Diameter mm | Product Code | A mm | H mm | Thickness mm |
| 80 | BMG80 | 28 | 8 | 1.0 |
| 100 | BMG100 | 28 | 8 | 1.0 |
| 120 | BMG120 | 28 | 8 | 1.0 |
| 125 | BMG125 | 28 | 8 | 1.0 |
| 140 | BMG140 | 28 | 8 | 1.0 |
| 150 | BMG150 | 28 | 8 | 1.0 |
| 160 | BMG160 | 28 | 8 | 1.0 |
| 180 | BMG180 | 28 | 8 | 1.0 |
| 200 | BMG200 | 28 | 8 | 1.0 |
| 225 | BMG225 | 28 | 8 | 1.0 |
| 250 | BMG250 | 28 | 8 | 1.0 |
| 275 | BMG275 | 28 | 8 | 1.0 |
| 300 | BMG300 | 28 | 8 | 1.0 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Our another popular similar duct clamp are provided with adjustable
bolt lever.
Application:
Quick lock duct clamp could be used for standard modular ducting
for dust collection, dust extraction, air filtration and particle
transport system.
And any other pipeline which needs the air tight requirement.
Packing of air duct clamp:
Cartons or wooden cases for mixed sizes.
Company:
We develop and manufacture modular ducting, circular ductwork in
galvanised steel, mild steel and stainless steel, along with a full
range of ancillary fittings and components. Our ducting system
adopts the flanged/lip edge quick connection way, allowing rapid
installation with no special tools needed. Products including
pressed bends / segmented bends( R=1.5D, R=2D , material involving
hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless
steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from
80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight
duct pipe, rapid lock pull ring , wide rings, slim rings,
flanges,sliding dampers/blast gate in manual and pneumatic,
butterfly dampers, clip bands, branch and trouser pieces, throttle
valves, diverters, pipe couplings, and many other customized clamps
etc.
