Stainless steel 304 V-Band Clamps & Couplings for flanged
connection
Product description
Our V-Band Clamps are made with high-quality materials and pass
extensive testing to ensure your air or liquid connections are held
tightly together in a leak-proof clamp.
Our quality control processes ensure you consistently receive a
high-quality V-Band Clamp order after order.
V-Band Clamp Properties
V-Band Clamps are designed for challenging, heavy-duty applications
where they have proven their high-performance capabilities. They
provide high strength, reliability, and corrosion resistance.
We offers custom sizing for V-Band Clamps, manufacturing them in a
variety of thicknesses and widths, or with various nut and bolt
combinations to fit your exact application.
Material Options for V-Band Clamps
V-Band Clamps are available in various grades of stainless steel
and zinc-plated carbon steel. High performance materials like
Inconel can be customized for your application and are available
upon request. All materials used are made to AISI and other key
global standards.
Application
V-Band Clamps are engineered and designed for heavy duty trucks,
automotive, high performance and racing, generator and marine
industries. Their tight design makes them a perfect solution for
decreased emissions. Applications include:
- Pumps
- Engines
- Exhaust systems
- Emissions
- Diesel particulate filters
- Muffler assemblies
- Filters
- Food and chemical processing equipment
- Turbochargers
- Telecommunication equipment and tubing
V-Band clamps can be quickly assembled and disassembled making them
an ideal clamp for equipment that requires frequent maintenance.
They can be used in any industrial application where a flanged
connection is required.
V-Band Clamp Assembly includes one (1) Standard T-Bolt style V-Band
Clamp, one (1) "Male" style interlocking V-Band Flange, and one (1)
"Female" style interlocking V-Band Flange.
| Flange ID | 2.5" |
| Flange OD | 3.08" |
| Clamp type | Standard T-bolt V band clamp |
| Materials type | Stainless steel 304 |
| Size scope | 1.5" 1.75" 2" 2.25" 2.5" 3" 3.5" 4" 5" 6" |

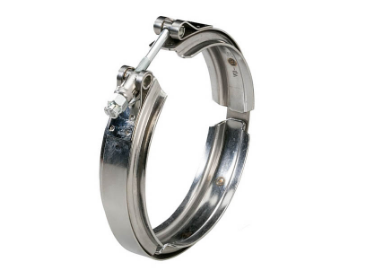

V-Band clamps with T-Bolt quick release style latches.

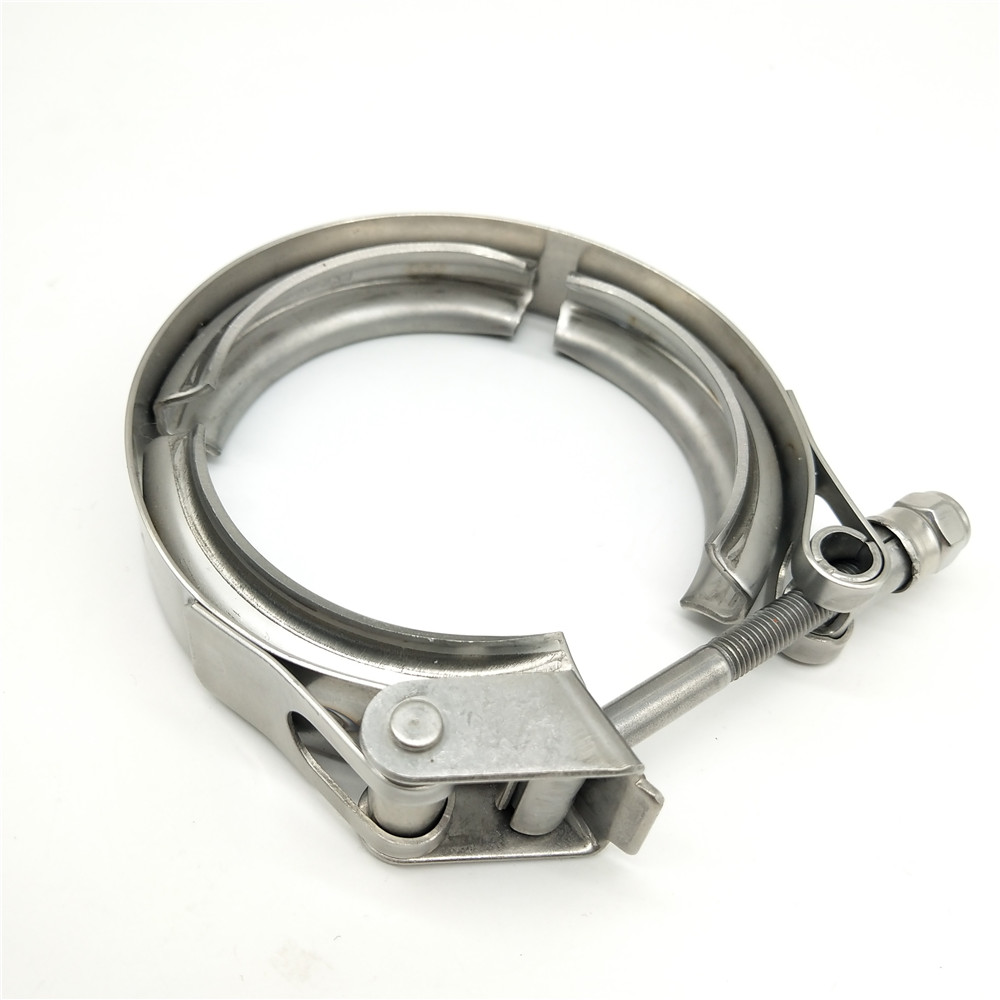

V band clamp with standard T-bolt
Advantages of V-band clamps:
When compared to 2 or 3-bolt flanges, the V-band connections are
lighter, quicker and easier to take apart. In most cases the V-band
clamps are economical when you consider the cost of time in
installation and reassembly. V-band connections require a smaller
fitment envelope as compared with multi-bolt flanges, and the
biggest advantage, the design of the V-band clamp applies uniform
force around the flange which maximizes the seal potential of the
flanges.
- Reduces assembly cost, saves time and ease of accessibility
- Ideal for applications requiring frequent access for cleaning,
inspection or replacement of internal components
- Smaller envelop dimensions, weight savings and improved appearance
- Provides additional strength by absorbing circumferential load
Installation:
For a V-band clamp to work optimally, proper installation is
critical. Tubes and components of the coupling must be joined and
aligned before installing the coupling. The flanges must also be
aligned correctly prior to coupling installation for good joint
performance.
Tighten the nut to approximately 70% of the required torque (on
double-latch assemblies, torque both latches equally). Check to
assure the coupling has seated over flanges equally around the
periphery. Also, check for correct flange alignment. Radial flange
alignment can be checked visually in the gap between adjacent
retainer segments.
Specifications:
| Size(Inch) | Flange ID(mm) | Exhaust pipe OD(mm) | Materials |
| 1.5 | 38.9 | 38.1 | Stainless steel 304 |
| 1.75 | 45.3 | 44.5 |
| 2 | 51.6 | 50.8 |
| 2.25 | 57.9 | 57.1 |
| 2.5 | 64.3 | 63.5 |
| 2.75 | 70.6 | 69.8 |
| 3 | 77 | 76.2 |
| 3.25 | 83.3 | 82.5 |
| 3.5 | 89.7 | 88.9 |
| 3.75 | 96.4 | 95.6 |
| 4 | 102.4 | 101.6 |
| 4.5 | 115.1 | 114.3 |
| 5 | 127.8 | 127 |
| 6 | 153.2 | 152.4 |
Packing and delivery:
Package method:Separate carton for each, big carton outside or as
clients's request
Delivery time:in 3 days if stocks available, new production time
depends on ordered quantity
Payment terms:T/T (30% as deposit, balance shall be paid against
the copy of bill.)
Shipping terms: FOB, CIF, CNF DDP etc.
