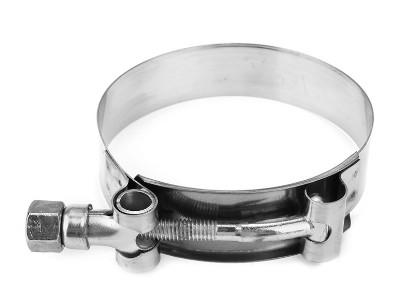

Product description:
Heavy Duty T-Bolt Clamps provide leak-proof connections in
applications that require increased installation torque and band
load. Designed for heavy-duty applications, Heavy duty T-Bolt Clamp
bolts and self-locking nuts are Zinc plated carbon steel. All other
band components are manufactured from 300 series stainless steel
with attention to quality craftsmanship to ensure high corrosion
resistance.
Heavy duty T-bolt clamp Properties:
- Heavy duty T-Bolt Clamps are designed to provide high tensile
strength, durability and corrosion resistance. They are made with a
rounded band edge to protect soft hose materials.

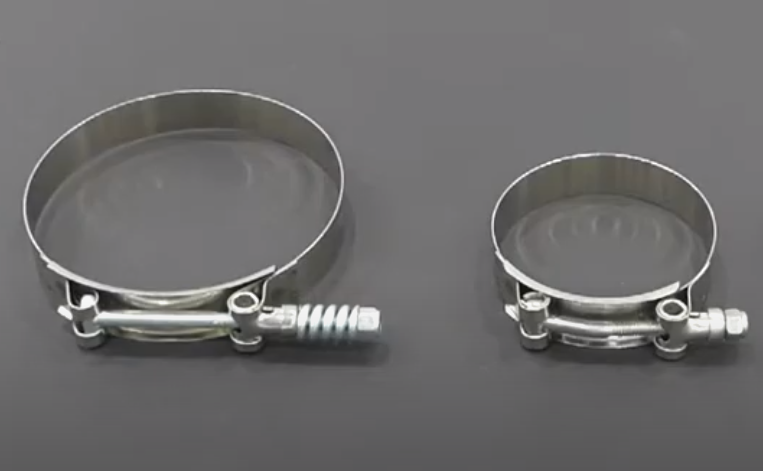

- Heavy duty T-Bolt Clamps provide considerably heavier duty
construction than
standard T-Bolt band clamps. The band is wider and thicker while the bolt is longer
with a larger diameter. Compare the sizes below:
| Standard T-bolt | Heavy duty T-bolt |
| Band width – .75 inch | Band width – .875 inch |
| Band thickness – .025 inch | Band thickness – .04 inch |
| Bolt diameter – .25 inch | Bolt diameter – .3125 inch |
| Bolt length – 2.75 inches | Bolt length – 4.0inches |
The bolts used in our heavy tudy T-bolt clamps are bent to allow a
better range along with a longer bolt length. Without this bend,
the bolt would bottom out on the band.
Material Options for HD T-Bolt Clamp
Heat-treated alloy steel bolts and self-locking nuts are
double-plated, clear chromate finished for high corrosion
resistance. All other clamp components are 300 series
bright-finished stainless steel. Bands are also available in 316
stainless steel by special order. All stainless steel used is made
to AISI and other key global standards

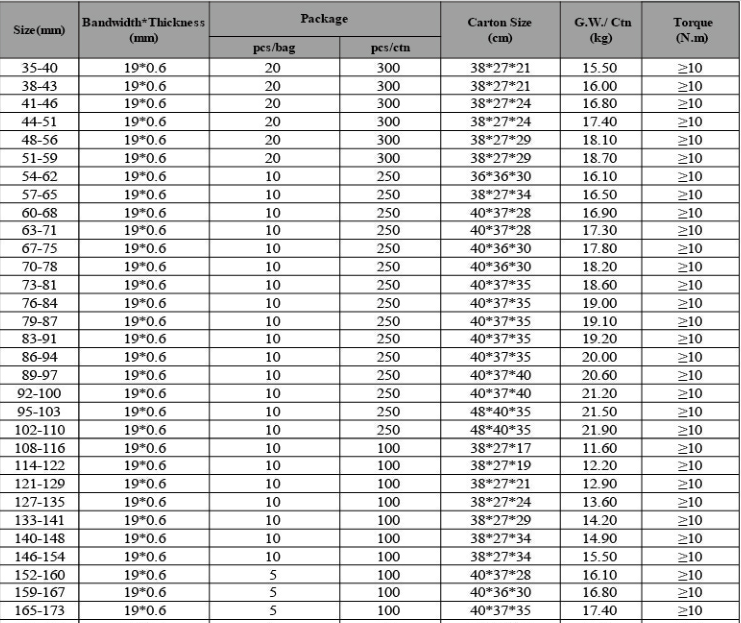

Specification:
Installation:
Proper measurement is extremely important when it comes to
selecting the proper size for your application. Please choose your T-Bolt Clamp based on your SILICONE HOSE. If a
hose or piping outside diameter is 2-1/8" (54mm). You would need
the T-bolt clamp effective size to be 51-59mm so the hose outside
diameter would fall in between the effective size range.
The advantage of T-bolt clamp
|
| 1 |
The high clamping strength helps prevent leakage in heavy duty
application
|
| 2 |
The smooth inner band prevent cut and gouge failures for
convetional hose
|
| 3 |
Clamp can cause on a softer hose
|
| 4 |
The curved carbon steel plated bolt makes an easy installation and
holds your application
|
5
|
The clamp is ideal for Buses, Trucks, industrial machinery,
off-rold and other heavy duty equipment
|
Packing and delivery:
Package method:Separate carton for each, big carton outside or as
clients's request
Delivery time:in 3 days if stocks available, new production time
depends on ordered quantity
Payment terms:T/T (30% as deposit, balance shall be paid against
the copy of bill.)
Shipping terms: FOB, CIF, CNF DDP etc.
Related clamps:
V band clamp, Butt jointed clamp, Sleeve connector, U bolt clamp,
Lap jointed clamp, mounting bracket and straps, vertical stack rain
cap etc.
Welcome OEM clamp inquiry.
