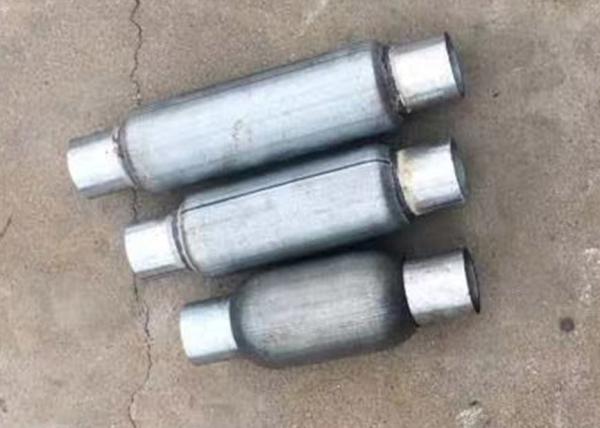

ID 2.25" 57mm SS409 Muffler Resonator Car Exhaust Pipe Resonator
Universal Performance Bottle Style
An exhaust resonator is designed to reduce the drone, buzz, or even
whine of your exhaust by attaching onto your muffler. These extra
parts can quiet your engine dramatically, modulating and changing
the sound so it’s more muted and less obvious. While these
resonators don’t really alter your emissions, they can make a world
of difference if you don’t want your car to sound loud on the road.
- The exhaust resonator is constructed of galvanized steel or
stainless steel, withstands high exhaust temperatures, and features
a "true straight-through" perforated core. It comes with a long
time limited warranty.
- Welds are good, and the unit is very solid
- This resonator facilitates undisrupted exhaust flow and removes
nearly all the drone and overall volume that is common with an
aftermarket exhaust
Quick details of exhaust muffler resonator:
Galvanized Exhaust Muffler Resonator
|
| Style and dimensinos | This stainless steel resonator is 12 inches long, features a
2.5-inch inlet/outlet, and has a 4-inch body diameter. |
| Materials | Superior galvanzied steel / aluminized steel / mild steel or ss 304
as request. |
| Fitment | Unitveral car, truck etc |
| Installation | Weld-on |
| Usage | Designed to dampen exhaust noise Facilitates undisrupted exhaust flow |
| Features | "true straight through" perforated core Solid welding / double welding Withstands high exhaust temperature |
The diffference between resonator and muffler:
A resonator helps modify the noise from the engine, it is the muffler that actually cuts down on the noise. The two
work in harmony (pun intended), to keep your car quiet and in
control on the road.
1. Typically used in combination with a muffler, installed before
muffler
2. Can eliminate buzzes and hums sound
3. Functional at certain sound frequencies
4. Easy to install,customer can install it step by step easily
5. Flat Surface, no deformation, have lower repair rate
6. High Quality 201 or 304 or 409 stainless steel material which is
anti-rusted with long service time.
7. Anti-rust, anti corrosion, looks high end because of good
surface
8. OEM, ODM is available
Specification of universal exhaust resonator:
| odel number | Inlet/outlet(inch) | Body diameter(inch) | Overal length(inch) |
| YP-EXMR112-9 | 1 1/2" | 4" | 9" |
| YP-EXMR134-9 | 1 3/4" | 4" | 9" |
| YP-EXMR200-9 | 2" | 4" | 9" |
| YP-EXMR112-12 | 1 1/2" | 4" | 12" |
| YP-EXMR134-12 | 1 3/4" | 4" | 12" |
| YP-EXMR200-12 | 2" | 4" | 12" |
| YP-EXMR214-12 | 2 1/4" | 4" | 12" |
| YP-EXMR212-12 | 2 1/2" | 4" | 12" |
| YP-EXMR300-15 | 3" | 4" | 15" |
| YP-EXMR134-15 | 1 3/4" | 4" | 15” |
| YP-EXMR200-15 | 2" | 4" | 15“ |
| YP-EXMR214-15 | 2 1/4" | 4" | 15” |
| YP-EXMR212-15 | 2 1/2" | 4" | 15" |
| YP-EXMR300-15 | 3" | 4‘ | 15" |
| YP-EXMR300-16 | 3" | 4.5“ | 16" |
| YP-EXMR134-18 | 1 3/4" | 4” | 18" |
| YP-EXMR200-18 | 2" | 4“ | 18" |
| YP-EXMR212-18 | 2 1/2" | 4” | 18" |
| YP-EXMR400-43 | 4" | 5.8“ | 43" |
Packaging and delivery of exhaust muffler resonator:
Package: Plastic bag + seaworthy carton + pallet
Delivery time: Depends on the order quantity and our production
schedule. But it wont be more than 30 days.
Installation method pf exhuast muffler resonator:
The primary function of resonator is to take the sound wave created
by exhaust pulse, and change them into an organized and pleasant
pattern and make your car has their own signature sounds. It’s kind
of pre muffler, positioned before muffler.
- Clamp on for No. 1, welde-on for No. 2
Advantage of us:
We have a complete offerings of mufflers & resonators for all
segments of the industry. Our "true straight through" internals
feature a stainless steel perforated tube that is wrapped in our
premium quality, multi-layer sound suppression materials that will
produce a low, deep tone while allowing for unrestricted flow and
maximum horsepower. Our mufflers & resonators are the perfect fit
and suitable for all naturally aspirated and forced induction
applications.
Contact me for details if you have demand of resonator and muffler.
Thanks.
