3" Stainless Steel Exhaust Clamp With V Band for Automotive
- Stainless Steel Exhaust Clamp V Band kit provide a quick assembly
or disassembly yet provide a great seal with even pressure at the
flanges.
There’re two common types of auto exhaust V band clamp in Yunpeng,
one type is 1 V band clamp + 2 Flanges (Flanges can be M/F style or
FF style) ; another type includes 1 V band Clamp (M/F flanges means
Male and Female Flanges with grooves , FF flanges means Flat
flanges.)
They can be widely used on exhaust system , turbo downpipe ,
catbacks , diesel engines, intake, intercooler piping and some
processing system.
Latch choices:

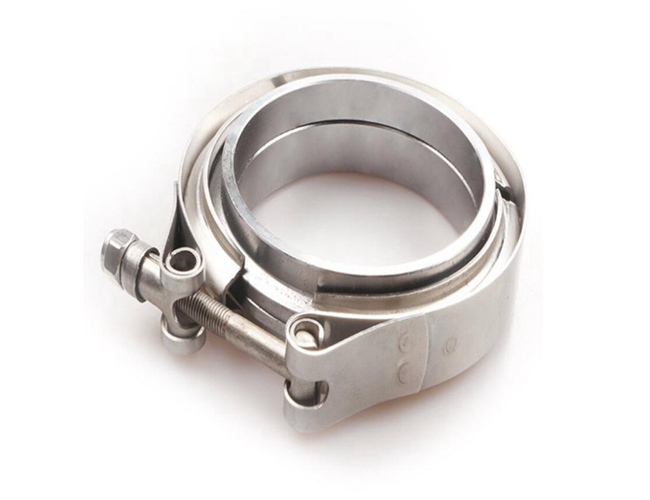

Above picture shows the standard T bolt v band clamp, another quick
release latch version is popular too, like below mechanism.
Material Choices:
Usually the V band are stainless steel material, bolt can be
galvanised or stainless steel, flange can be mild steel or
stainless too.
Some customers try to use the galvanized material for all clamp to
reduce the cost, that's acceptable too. Anyway, let's have your
idea or requirement.
Flanges:
These V-band flanges are machined , designed to slide about 1/8"
onto the exhaust pipe before welding , which can keep them centered
and ensures a smooth flow of exhaust.
Flanges characteristics:
Beautiful surface
Fit Perfectly
Welded easily
No leaks
Flange Material : Mild Steel or stainless steel
Product Specifications:
Item | Material | Spec.(inch) | Clamp ID(mm) | Flange ID(mm) |
V-Band Exhaust Pipe Clamps | SUS 304 | 1.5” | 60 | 38.9 |
| | 1.75” | 66.4 | 45.3 |
| | 2” | 72.8 | 51.6 |
| | 2.25” | 79.1 | 57.9 |
| | 2.36” | 81.6 | 64.3 |
| | 2.5” | 85.5 | 70.6 |
| | 2.75” | 91.8 | 77 |
| | 3” | 98.2 | 83.3 |
| | 3.25” | 104.5 | 89.7 |
| | 3.5” | 110.9 | 96.1 |
| | 4” | 123.5 | 102.4 |
| | 4.5” | 136.3 | 115.1 |
| | 5” | 149 | 127.8 |
| | 6” | 174.4 | 153.2 |
Product Features:
- Variety of bolts are available, in different length,diameters or
material
|
- Different Latch system are provided , either quick release version
or standard T bolt version.
|
- Custom diameters, width, thickness and sizes are welcome.
|
- Different flanges , V inserts are available to choice.
|
- Quality manufacturing, excellent performance, shiny/bright surface
with no burr.
|
- Clear screw thread & thread galling free.
|
About Yunpeng:
We supply many engine exhaust system products in worldwide range,
our products including exhaust muffler, exhaust pipe, corrugated
flexible pipe,exhaust muffler rain cap, V band clamps, bolted U
clamp,bottle joint clamp and other exhaust accessories.
